Stevpris MK5 HHP Anchor

Stevpris MK5 Anchor also called Stevpris anchor, MK5 anchor, Drag anchor, Offshore anchor, Drag Embedment anchor. It is widely used in the marine offshore mooring projects and deep sea aquaculture cage mooring project.

Availability:
Quantity:
Product Description

                                                                              Stevpris HHP anchor(MK5 Anchor)

                                                                               ---High Holding Power Anchor---

Stevpris MK5 Anchor also called Stevpris anchor, MK5 anchor, Drag anchor, Offshore anchor, Drag Embedment anchor.

It is widely used in mooring projects with it's advantage design of reaching the ultimate holding capacity. For a typical single point mooring(SPM), it consists of 2 or 3 chain anchor legs to a central chain and line riser. Each leg consists of a drag embedment anchor and anchor chain. Stevpris MK5 anchor is an ideal anchor used in the offshore fish farming and open ocean aquaculture mooring systems.


Anchor Composition:

The anchor consists of anchor shank, anchor fluke, big front axle, small rear axle and shackle.

MK5 Anchor

Characteristics:

  • MK5 anchor is SHHP anchor, and its holding power factor can reach the anchor's dead weight 33-55 times.

  • The anchor is at two angles, 32 degrees for sand, gravel and clay. 50 degrees for soft scale. The condition of the soil on the sea floor should be known before anchoring.

  • Stevpris anchor is suitable for long-term, semi-long-term fastening of working ships at sea.

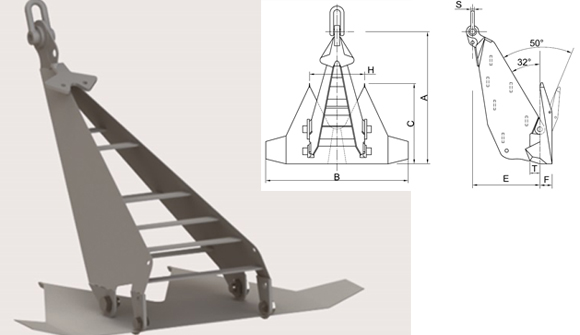

MK5 Anchor


Weight

Dimensions (in mm)

(kg)

A

B

C

E

F

H

T

S

1000

2580

2780

1582

1314

236

1074

430

62

1500

2954

3184

1812

1505

271

1230

493

80

3000

3721

4011

2283

1896

342

1550

622

90

5000

4412

4756

2707

2248

406

1837

738

110

7000

4910

5290

3011

2500

453

2045

825

117

8000

5161

5563

3166

2629

474

2149

862

130

10000

5559

5992

3410

2832

511

2315

929

140

12000

5908

6368

3624

3010

543

2460

988

150

14000

6219

6704

3815

3169

572

2590

1040

160

15000

6364

6860

3904

3242

585

2650

1064

170

18000

6763

7290

4149

3446

622

2816

1131

180

20000

7004

7550

4297

3569

644

2917

1171

190

22000

7230

7794

4436

3684

665

3011

1209

200

25000

7545

8133

4629

3844

694

3142

1262

200

30000

8018

8645

4919

4085

737

3339

1341

220

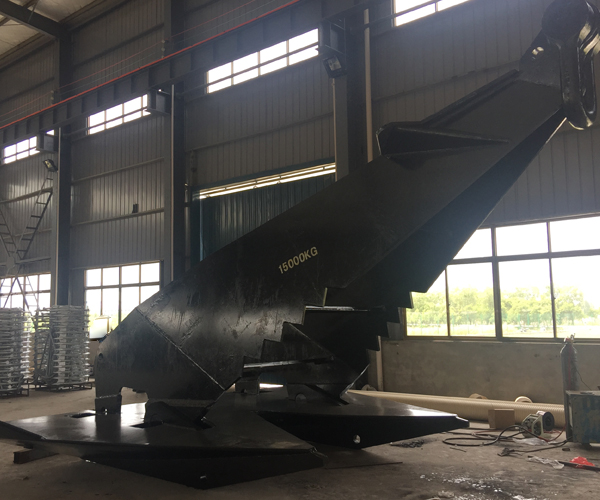

MK5 Anchor Photos:

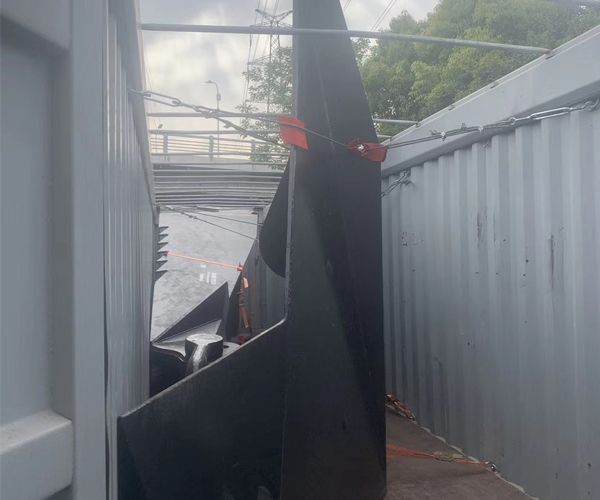

MK5 AnchorStevshark Anchoroffshore mooring anchor

Anchoring

Anchoring
