---High Holding Power Anchor---

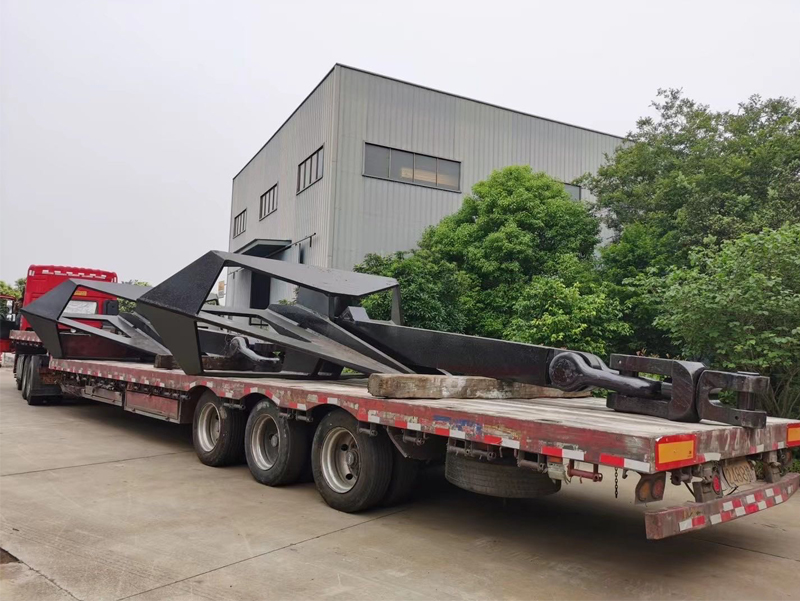

Flipper Delta HHP anchor get it's name from the triangular shape of the anchor head. Delta anchor is widely used as bow anchor of ships and mooring of large Marine structures. The anchor head of the delta anchor is welded with steel plate and the anchor rod is cast.
Nominal Weight | Dimensions (in mm) | |||||
(kg) | A | B | C | D | E | F |
300 | 1200 | 960 | 1080 | 457 | 1380 | 45 |
500 | 1500 | 1200 | 1350 | 571 | 1725 | 50 |
1000 | 1875 | 1500 | 1686 | 714 | 2155 | 62 |
1080 | 1915 | 1350 | 1686 | 722 | 2200 | 62 |
2000 | 2363 | 1890 | 2124 | 900 | 2715 | 82 |
3000 | 2700 | 2160 | 2430 | 1028 | 3105 | 90 |
4000 | 2975 | 2380 | 2676 | 1133 | 3420 | 100 |
5000 | 3250 | 2600 | 2922 | 1238 | 3735 | 110 |
7000 | 3575 | 2860 | 3216 | 1361 | 4100 | 117 |
7500 | 3650 | 2925 | 3290 | 1390 | 4210 | 117 |
8000 | 3730 | 2900 | 3360 | 1420 | 4300 | 130 |
9000 | 3950 | 3160 | 3555 | 1504 | 4543 | 135 |
10000 | 4100 | 3280 | 3690 | 1561 | 4715 | 140 |
12000 | 4490 | 3575 | 4030 | 1695 | 5320 | 145 |
13500 | 4670 | 3720 | 4195 | 1765 | 5535 | 150 |
15000 | 4845 | 3875 | 4355 | 1830 | 5735 | 150 |
18000 | 5140 | 4080 | 4610 | 1940 | 6080 | 160 |
20000 | 5330 | 4260 | 4790 | 2010 | 6310 | 170 |
22500 | 5490 | 4360 | 4905 | 2060 | 6470 | 180 |
25000 | 5740 | 4590 | 5160 | 2165 | 6795 | 195 |
Waysail specializes in sustainable and environmentally marine and aquaculture solutions, based on many years of experience in the supply and installation of all types of mooring systems, from aquaculture farms to single boat moorings.
