Marine Mooring Buoy

Our company started as a marine equipment supplier, and has developed into a supplier of supplying turnkey solutions for marine and aquaculture customers. We can design and supply whole sets of mooring system(anchor, anchor chains, mooring buoy, ropes, connection hardware), Cage & Net and relative equipment for aquaculture use.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Marine Mooring Buoy

---OEM & ODM---

General surface support buoys are extensively used in single point mooring (SPM) system. The three main types are cylindrical buoys, chain-through buoys and pick-up buoys.

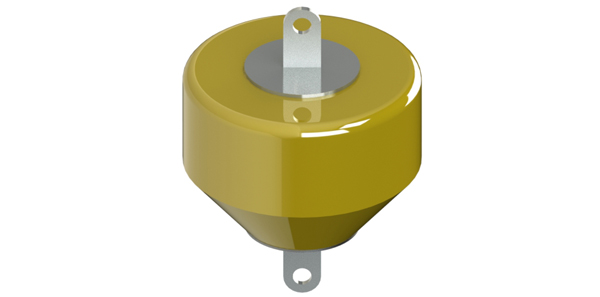

We supply mooring buoys with structural tie bars with a minimum breaking load ranging from 2 tonne to over 450 tonne. This production technology is to mould the buoy bar structural members directly in to the buoy hull thereby eliminating the problem of retro fitting these members. This buoy has a much higher strength and durability than the traditional rota-moulding process.

Diameter mm	Height mm	Weight kg	Net Buoyancy kg	Chain Capacity kg
1050	414	42	300	230
1260	414	50	450	330
1360	800	146	1000	750
1360	1200	180	1500	1100
1800	1000	370	2000	1400
2000	1000	435	2500	1750
2200	1000	520	3000	2100
2500	1000	650	4000	2800
2800	1000	1050	5750	4000
2500	2000	1500	8000	5500

fish farm mooring system

marine mooring buoy steel buoy floating buoy aquaculture mooring buoy polyethylene buoy PE Buoy EPS foamed buoy Cylindrical Mooring Buoys buoy mooring buoy
