In many cases, chain is coupled with fibre rope, sections of chain on a mooring line provide weight and wear resistance where it is most needed, while fibre sections keep weight down and improve the manageability of the system.
Availability: | |
---|---|
Quantity: | |

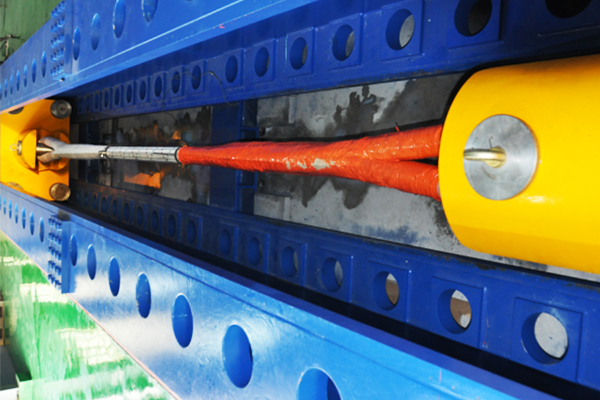

Deepwater Mooring Rope
Powermixed Rope (PP&PET Rope)
Materials: Core/Dyneema Fiber, Cover(optional)
Density: 0.97g/cm3
Melting point: 145℃
Abrasion resistance: Very good
U. V.resistance: Super good
Chemical corrosion resistance:Very good
Application: Deep water mooring
It is parallel construction rope, designed for deep water mooring, it consists of three parts, the core, sand barrier and cover. Three, eight or twelve strands ropes oriented parallel to the core rope, it keeps very good strength. During permanent mooring, the sand barrier can protect the internal of rope performance.
Specification:
3/4-strand | 8/12-strand | ||||||||
Available Size | Weight | Breaking | Available Size | Weight | Breaking strength | ||||
(4-60mm) | strength | (8-112mm) | |||||||
mm Dia | Inch Dia | kg/220m | Ton | mm Dia | Inch Cir | g/m | kg/220m | kN | Ton |
4 | 1/6 | 2 | 0.3 | 24 | 3 | 335 | 74 | 123 | 12.5 |
6 | 1/4 | 4.7 | 0.9 | 28 | 3-1/2 | 460 | 101 | 163 | 16.6 |
8 | 1/3 | 8.3 | 1.6 | 32 | 4 | 595 | 131 | 209 | 21.3 |
10 | 5/12 | 12.4 | 2.4 | 36 | 4-1/2 | 742 | 163 | 273 | 27.8 |
12 | 1/2 | 17.9 | 3.4 | 40 | 5 | 915 | 201 | 330 | 33.6 |
14 | 7/12 | 25 | 4.7 | 44 | 5-1/2 | 1090 | 240 | 392 | 40 |
16 | 2/3 | 31.6 | 5.9 | 48 | 6 | 1320 | 290 | 453 | 46.2 |
18 | 3/4 | 41 | 7.5 | 50 | 6-1/4 | 1410 | 310 | 490 | 50 |
20 | 5/6 | 50 | 9 | 52 | 6-1/2 | 1500 | 330 | 526 | 53.6 |
22 | 11/12 | 61 | 10.7 | 56 | 7 | 1790 | 394 | 608 | 62 |
24 | 1 | 72 | 12.6 | 60 | 7-1/2 | 2005 | 441 | 692 | 71 |
26 | 1-1/12 | 84 | 14.6 | 64 | 8 | 2260 | 497 | 775 | 79 |
28 | 1-1/6 | 98 | 16.6 | 70 | 8-3/4 | 2690 | 592 | 920 | 94 |
30 | 1-1/4 | 111 | 19 | 72 | 9 | 2840 | 625 | 971 | 99 |
32 | 1-1/3 | 126 | 21 | 80 | 10 | 3490 | 768 | 1177 | 120 |
36 | 1-1/2 | 161 | 23.3 | 85 | 10-5/8 | 3933 | 865 | 1331 | 136 |
40 | 1-2/3 | 200 | 26.2 | 90 | 11-1/4 | 4400 | 968 | 1489 | 152 |
44 | 1-5/6 | 245 | 28.8 | 96 | 12 | 5000 | 1100 | 1687 | 172 |
48 | 2 | 290 | 32 | 104 | 13 | 5860 | 1289 | 1982 | 202 |
52 | 2-1/6 | 330 | 35 | 112 | 14 | 6740 | 1483 | 2286 | 233 |
Polyester Double Braided Rope
Material: core/polyester, cover/polyester
Density: 1.38g/cm3
Melting point: 251℃
Abrasion resistance: Very good
U.V.resistance: Good
Chemical corrosion resistance: Good
Application: Deep water mooring

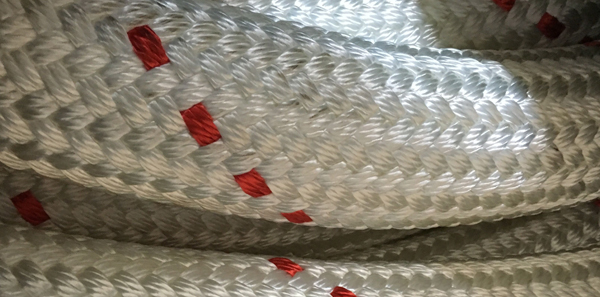

Polyester Double Braid provides an excellent combination of high strength, low stretch, excellent weathering and easy handling. Polyester Double Braid is identified with one external black/red marker.
Specification:
Nominal Diameter | Size (Circ In.) | Approximate Weight | Minimum Tensile Strength | |
Inch | MM | Kg/100m | Kn | |
1/4 | 6 | 3/4 | 3.6 | 10.7 |
5/16 | 8 | 1 | 5.4 | 16 |
3/8 | 9 | 1-1/8 | 7.1 | 21.4 |
7/16 | 11 | 1-1/4 | 9.4 | 28 |
1/2 | 12 | 1-1/2 | 12.8 | 37.4 |
9/16 | 14 | 1-3/4 | 16.5 | 47.8 |
5/8 | 16 | 2 | 19.5 | 54.7 |
3/4 | 18 | 2-1/4 | 28 | 77.4 |
7/8 | 22 | 2-3/4 | 38.1 | 106.8 |
1 | 24 | 3 | 49.9 | 138.8 |
1-1/8 | 28 | 3-1/2 | 63.1 | 175.7 |
1-1/4 | 30 | 3-3/4 | 77.8 | 214 |
1-5/16 | 32 | 4 | 86 | 236.2 |
1-1/2 | 36 | 4-1/2 | 112.2 | 286 |
1-5/8 | 40 | 5 | 131.3 | 346.1 |
1-3/4 | 44 | 5-1/2 | 153.3 | 396.8 |
2 | 48 | 6 | 199.4 | 489.3 |
2-1/8 | 52 | 6-1/2 | 224.7 | 551.6 |
2-1/4 | 56 | 7 | 251.5 | 627.4 |
2-1/2 | 60 | 7-1/2 | 311 | 756.2 |
2-5/8 | 64 | 8 | 343.8 | 827.4 |
2-3/4 | 68 | 8-1/2 | 394.4 | 916.3 |
3 | 72 | 9 | 447.9 | 1054.2 |
3-1/4 | 80 | 10 | 526.8 | 1298.9 |
3-5/8 | 88 | 11 | 654.8 | 1548 |
4 | 96 | 12 | 797.7 | 1783.7 |
4-1/4 | 104 | 13 | 900.4 | 2019.5 |
In a deepsea aquaculture single point mooring system, PP&PET rope acting as down mooring line, it has floating characteristic, polester double braide rope acting as up mooring line, it has sinking characteristic, the goal of the mooring is to create an inverse catenary.
The diameter of rope our factory can manufacture is from 2mm to 300mm. Structures are including 3 strands, 4 strands, 6 strands, 8 strands, 12 strands, 16 strands, 24 strands (double braided), 32 strands (double braided), 36 strands (double braided), 48 strands (double braided) and multi structure braided rope. The ropes can apply to ocean engineering, ocean shipping, shipbuilding, port towing, aquaculture mooring, sea farming and etc. The main products are Ultra High Molecular Weight Polyethylene (Dyneema®), Power-mixed Rope (PET+PP), Polyester (PET), Polyamide(Nylon/PA), Polypropylene (PP), Polyethylene (PE) and etc. Welcome to contact us: sales@qdwaysail.com
Waysail specializes in sustainable and environmentally marine and aquaculture solutions, based on many years of experience in the supply and installation of all types of mooring systems, from aquaculture farms to single boat moorings.
