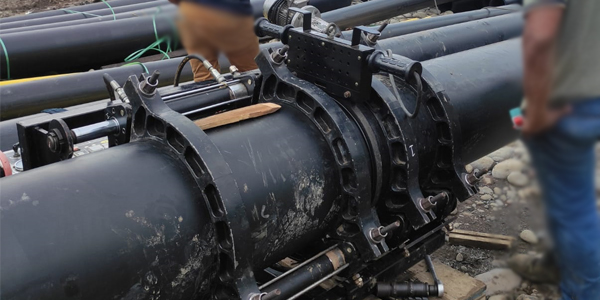

HDPE Pipe Welder / Hydraulic Butt Fusion Welding Machine
This new generation of geomembrane welding, plastic welding equipment meet the needs for plastics industry continuously expanding the application in the modern social engineering. With an advanced hot-wedge, hot air structure to weld plastic for a variety of different material and thickness. It is available for welding of HDPE, PVDF, EVA, PP, etc. all can be hot-melt material.
Application& Features:
1: Consisis of basic frame, milling cutter, heating plate, hydraulic unit and support.
2: Working environment must be between -40ºC~40ºC.
4. Heating plate Max. temperture: 270ºC.
5. Suitable for material of PE, HDPE, PP, PVDF pipes butt welding.
6. Integrated dia casting aluminum clamps, steel base with cylinder, provides stable performance.
7. Planing tool with full gear transmission structure. Durable and long life HSS blade.
8. Heating plate with high quality PTFE coating, enables swift temperature control.
Welding Introduction For HDPE pipes:
1. Fix the clamps on the machine rack.
2. Place the HDPE pipes on the clamps and tighten the bolts.
3. Mill the end of the HDPE pipes with the facer.
4. Put the heater plate on the machine rack and heat the pipes within the proper time.
5. Remove the heater plate and connect the HDPE pipes.
Specification:
Model | WS160 |
Pipe size(mm) | 63mm,75mm,90mm,110mm,125mm, 140mm,160mm |
Heating plat Max temp | 270°C |
Temp deviation in surface(170-250) | ±5°C |
Max tolerance of welding jointing | 0.3MM |
Max working pressure hydraulic station | 6.3Mpa |
Working voltage | 220V |
Working frequency | 50-60HZ |
Motor power/voltage of hydraulic station | 0.75KW / 220V |
Power/voltage of heating plate | 1.5KW/220V |
Power/voltage of planning tool motor | 1.1KW / 220V |
Total Power | 3.35KW |
Overall weight of machine(kg) | 111KGS |
Model | WS200 |
Pipe size(mm) | 63mm,75mm,90mm,110mm,125mm,140mm, 160mm,180mm,200mm |
Heating plat Max temp | 270°C |
Temp deviation in surface(170-250) | ±5°C |
Max tolerance of welding jointing | 0.3MM |
Max working pressure hydraulic station | 6.3Mpa |
Working voltage | 220V |
Working frequency | 50-60HZ |
Motor power/voltage of hydraulic station | 0.75KW / 220V |
Power/voltage of heating plate | 1.8KW/220V |
Power/voltage of planning tool motor | 1.1KW / 220V |
Total Power | 3.65KW |
Overall weight of machine(kg) | 117KGS |
Model | WS250 |
Pipe size(mm) | 90mm,110mm,125mm,140mm,160mm,180mm,200mm, 225mm,250mm |
Heating plat Max temp | 270°C |
Temp deviation in surface(170-250) | ±5°C |
Max tolerance of welding jointing | 0.3MM |
Max working pressure hydraulic station | 6.3Mpa |
Working voltage | 220V |
Working frequency | 50-60HZ |
Motor power/voltage of hydraulic station | 0.75KW / 220V |
Power/voltage of heating plate | 2.3KW / 220V |
Power/voltage of planning tool motor | 2KW / 220V |
Total Power | 5.05KW |
Overall weight of machine(kg) | 122KGS |
Model | WS315 |
Pipe size(mm) | 110mm,125mm,140mm,160mm,180 |
Heating plat Max temp | 270°C |
Temp deviation in surface(170-250) | ±5°C |
Max tolerance of welding jointing | 0.3MM |
Max working pressure hydraulic station | 6.3Mpa |
Working voltage | 220V |
Working frequency | 50-60HZ |
Motor power/voltage of hydraulic station | 0.75KW / 220V |
Power/voltage of heating plate | 3.1KW/220V |
Power/voltage of planning tool motor | 2KW / 220V |
Total Power | 5.85KW |
Overall weight of machine(kg) | 200KGS |
| Model | WS355 |
| Pipe size(mm) | 160mm,180mm,200mm,225mm,250mm,280mm,315mm, 315mm,355m |
| Heating plat Max temp | 270ºC |
| Temp deviation in surface(170-250) | ±5ºC |
| Max tolerance of welding jointing | 0.3MM |
| Max working pressure hydraulic station | 6.3Mpa |
| Working voltage | 220V |
| Working frequency | 50-60HZ |
| Motor power/voltage of hydraulic station | 0.75KW / 220V |
| Power/voltage of heating plate | 3.55KW / 220V |
| Power/voltage of planning tool motor | 2.0KW / 220V |
| Total Power | 6.3KW |
| Overall weight of machine(kg) | 260KGS |
Model | WS450 |
Pipe size(mm) | 200mm,225mm,250mm,280mm,315mm, 355mm,400mm,450mm |
Heating plat Max temp | 270°C |
Temp deviation in surface(170-250) | ±5°C |
Max tolerance of welding jointing | 0.3MM |
Max working pressure hydraulic station | 8Mpa |
Working voltage | 380V |
Working frequency | 50-60HZ |
Motor power/voltage of hydraulic station | 1.5KW / 380V |
Power/voltage of heating plate | 6.5KW / 380V |
Power/voltage of planning tool motor | 1.1KW / 380V |
Total Power | 9.1KW |
Overall weight of machine(kg) | 373KGS |

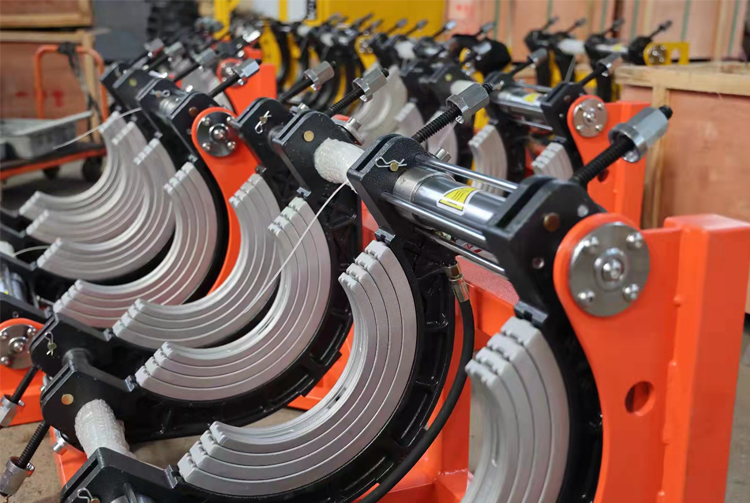

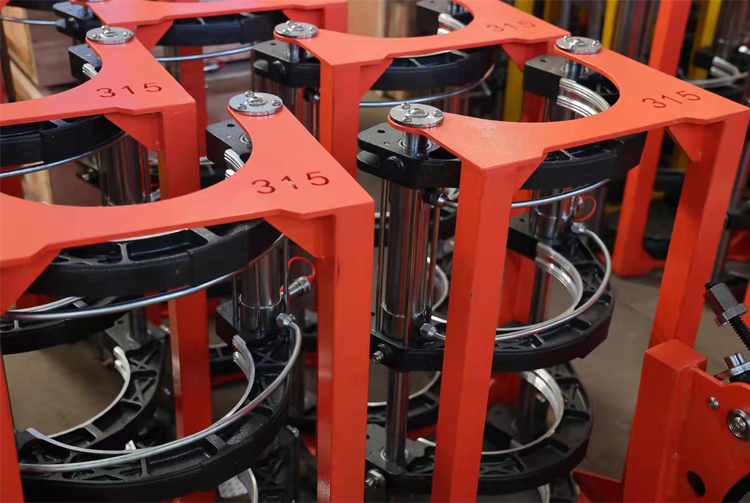

Details of Butt Fusion Welding Machine

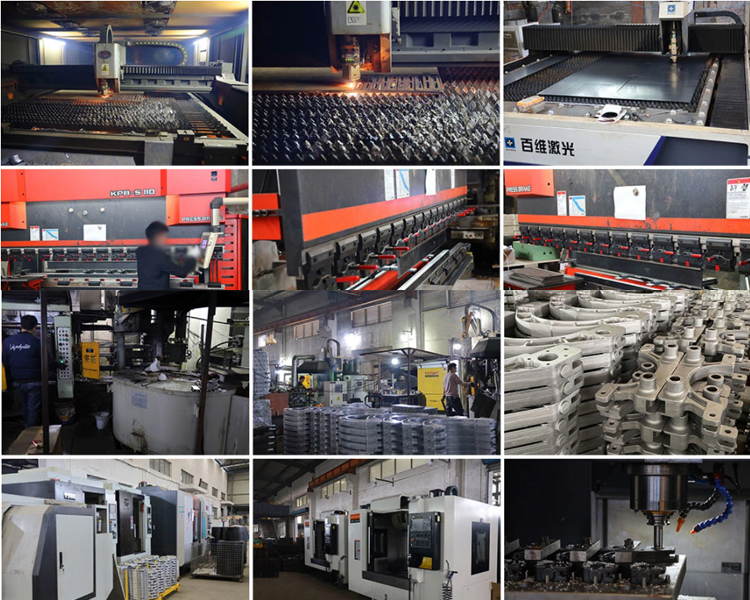

Workshop of Butt Fusion Welding Machine
Certificate

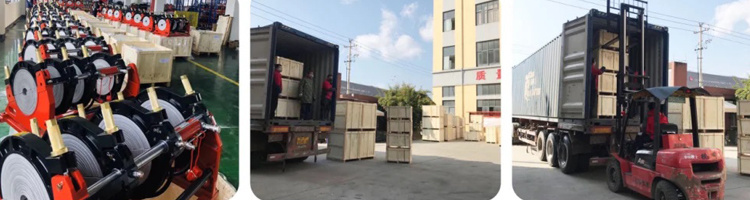

Package & Delivery
