A-346 G80 Color Painted Forged Alloy Steel Master Link Assembly is the essential components in lifting and rigging applications. All Links are Quenched and Tempered with high quality. To be mounted with chains by mooring shackles, acting as mooring line for aquaculture mooring system.
| Quantity: | |
|---|---|
G80 A346 Master Link Assembly
Size | Weight/KG | WLL | A | B | D | a | b | d |
6 | 1.27 | 2.36 | 135 | 75 | 18 | 54 | 25 | 14 |
7 | 1.33 | 3.14 | 135 | 75 | 18 | 60 | 38 | 14 |
8 | 2.19 | 4.25 | 160 | 90 | 22 | 70 | 34 | 16 |
10 | 3.81 | 6.7 | 180 | 100 | 25 | 85 | 40 | 18 |
13 | 6.08 | 11.2 | 200 | 110 | 32 | 115 | 50 | 22 |
16 | 11.38 | 17 | 260 | 140 | 36 | 140 | 65 | 25 |
18 | 20.09 | 21.2 | 340 | 180 | 45 | 180 | 110 | 32 |
20 | 23.83 | 26.5 | 350 | 190 | 50 | 180 | 110 | 32 |
22 | 27.14 | 31.8 | 355 | 178 | 50 | 180 | 100 | 38 |
26 | 35.14 | 45 | 400 | 200 | 56 | 200 | 115 | 40 |
32 | 47.48 | 50 | 430 | 220 | 63 | 180 | 100 | 45 |

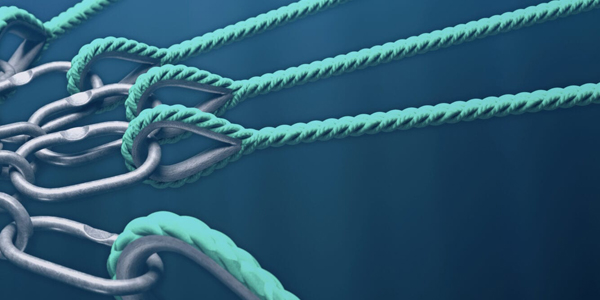

Application:
Master Links are to be mounted with chains by shackles, acting as mooring line for aquaculture mooring system.
